Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel

Name: Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel
Brand: TECHWELL
Price: 1 USD

Quality Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel for sale

Brand Name : TECHWELL

Model Number : TW-K610

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Contact us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20sets

Delivery Time : 55-65 working days

Packaging Details : Standard packing

Effective Width : 610mm

Material thickness : 0.8-1.2mm

Main Motor Power : 17.7Kw

Material of Rollers : 45# steel

Cutting Type : Hydraulic cutting

Cutting Blade Material : Cr12Mov

Contact Now

Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel

Main Specifciations

Material Thickness	0.8-1.2mm
Effective Width	610mm
Mounting Dimension	8900mmx2250mmx2300mm
Total Weight	About 13T
Control System	Electric control
Cutting Type	Hydraulic cutting
Main Motor Power	17.7Kw
Forming Power	7.5Kw
Curving Motor Power	4 Kw
Generator Power	30Kw
Material of Roller	45# steel, quench HRC58-62
Material of Shaft	45# steel, adjusted
Material of Cutting Blade	Cr12Mov

Descriptions

The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding.
It has the ability of strong loading and stable operation when running the machine.
All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

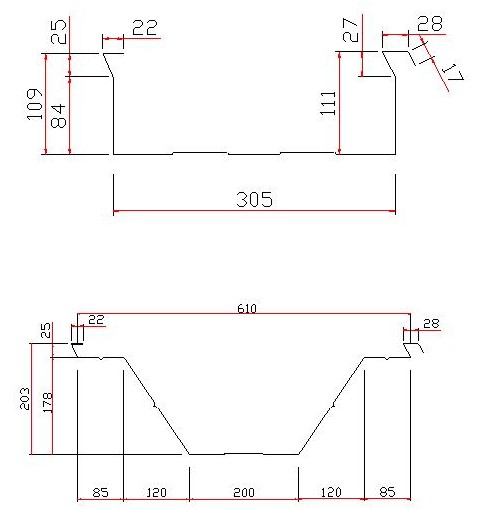

Profile Drawing

Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel

Machine Outline

Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel

Finished Products

Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel

Applications

K Span arched roof, k span roofing, large span roof, no-girder roof panel

Our Advantages

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

More Machine Pictures

Trailer Mounted K Span Roll Forming Machine For Coil Width 914mm Span Panel
